Alexa Mini EXT Breakout
Alexa Mini EXT Breakout

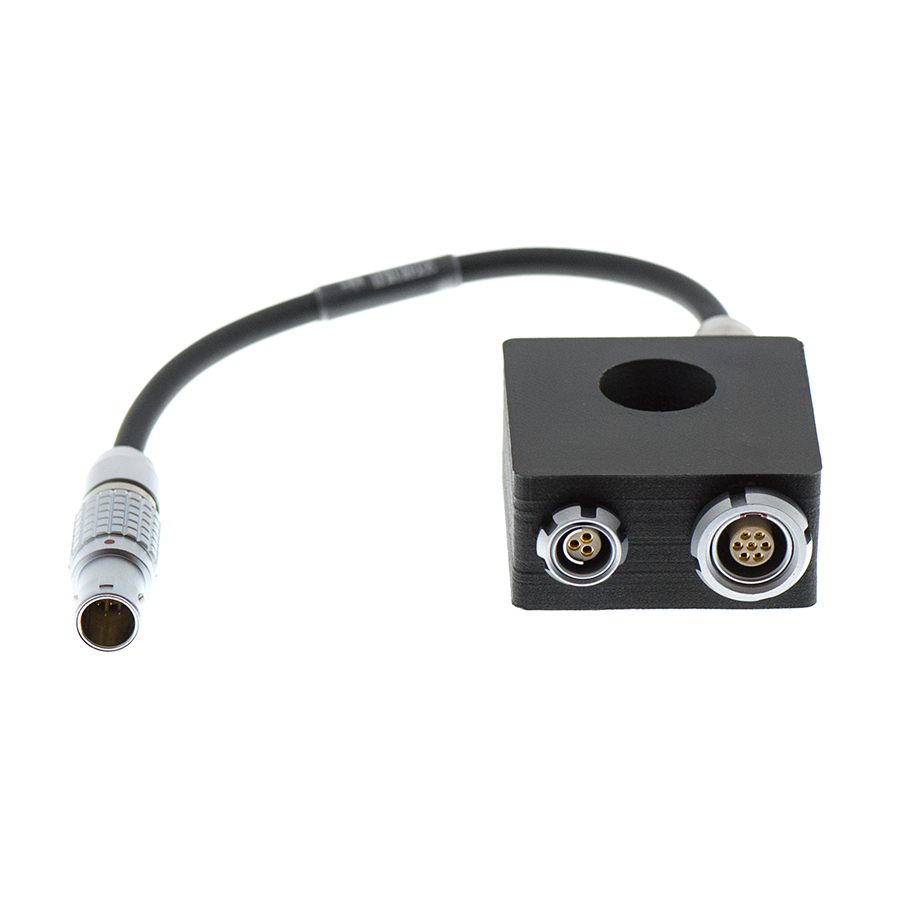

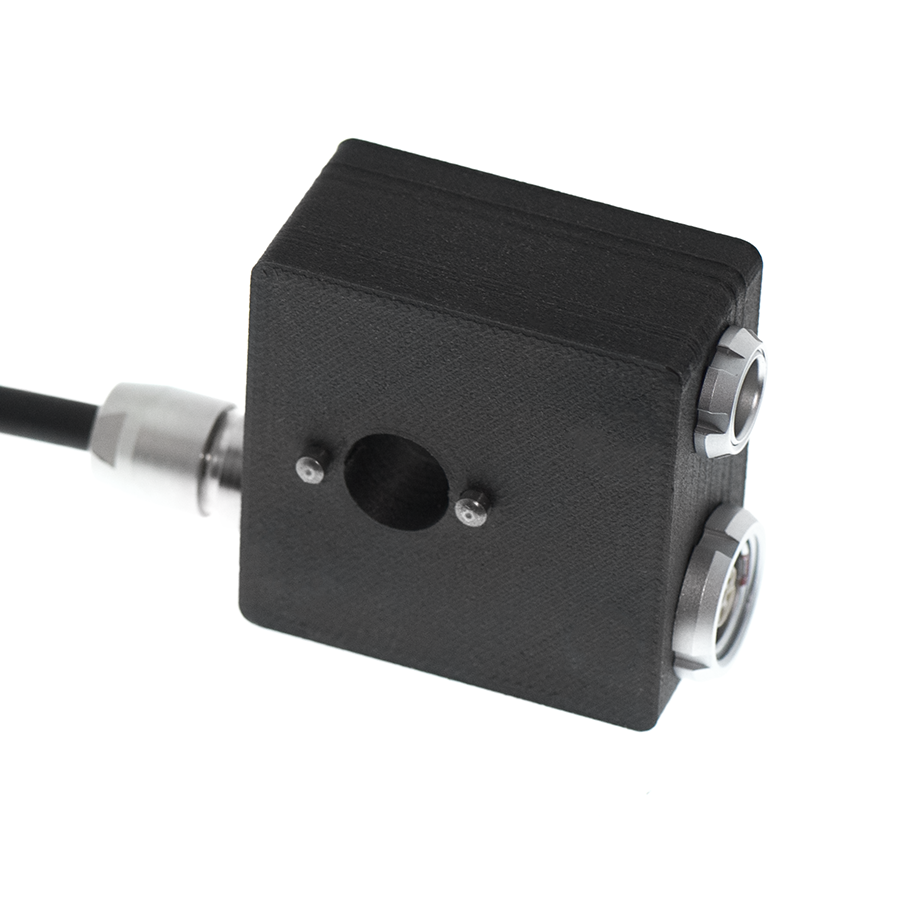

The Alexa Mini EXT Breakout is a breakout box for the Alexa Mini that passes the 7-pin pin EXT port through while simultaneously providing RS functionality to a separate 3-pin Arri RS jack. The box attaches to the camera via a 3/8" through hole.
This breakout box allows the use of the StarliteHD5-Arri to control the camera via its touch screen interface with its 7-pin to 5-pin cable while also allowing a standard 3-pin Arri RS cable to be plugged in. The user can then remotely trigger the camera from their wireless follow focus system.
The Alexa Mini EXT Breakout's unibody housing is made from a 3D printed carbon fiber and nylon composite that is very strong and extremely lightweight. This housing is guaranteed not to warp or crack. Housing dimensions are: 1.57" x 1.57" x 0.79" (40mm x 40mm x 20mm)
All Rencher Industries products that use printed parts carry a 5-year warranty on the printed material. If your printed part warps, cracks, or fails for any reason, we will replace the defective printed part at no cost. Cable assemblies use genuine parts and high-quality cable. Cable assemblies are made in the USA.
Materials
Materials
- Printed carbon fiber-nylon composite
- Genuine Lemo and Fischer connectors
- Spiral shielded flexible PVC cable
- Steel hardware
Dimensions
Dimensions
- Housing: 1.57" x 1.57" x 0.79" (40mm x 40mm x 20mm)
- Cable length: 4" (10.16mm)
Weight
Weight
Support
Support
Shipping & Returns
Shipping & Returns
- Insurance included
- 72 Inspection window
- View shipping policy
