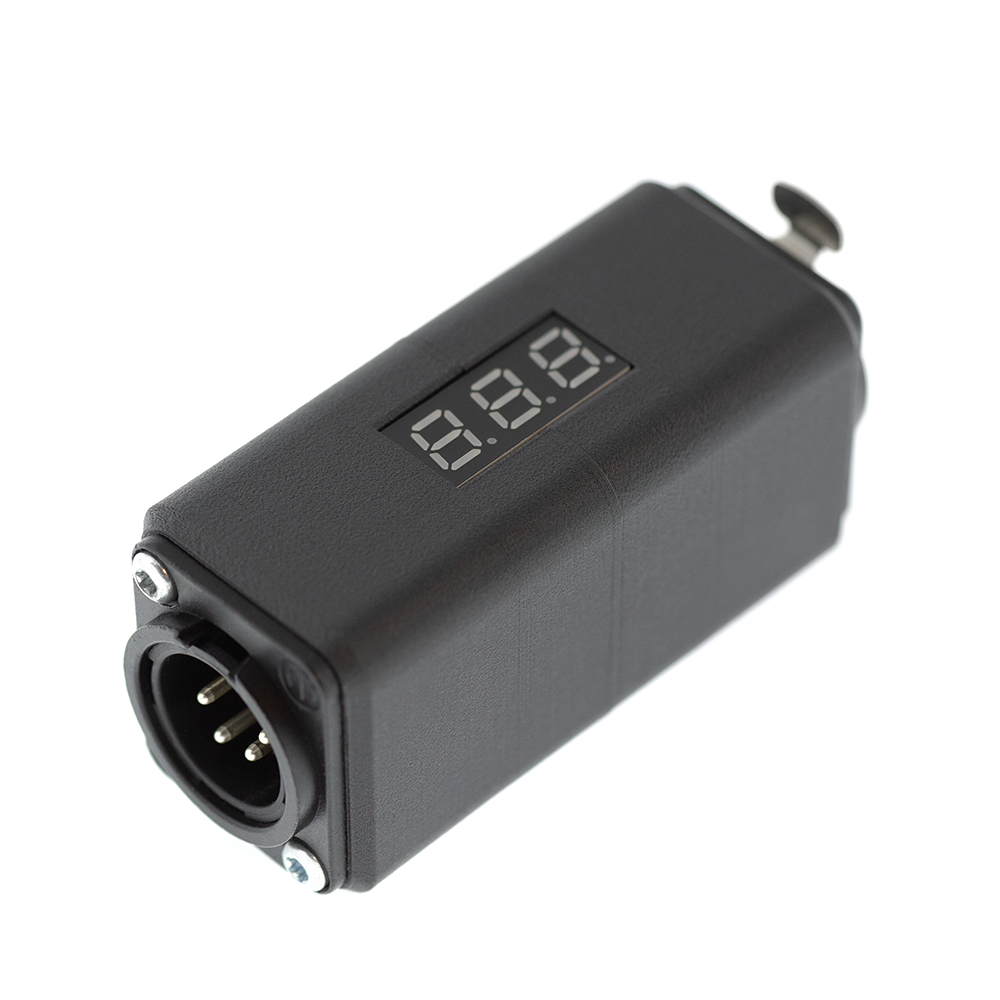

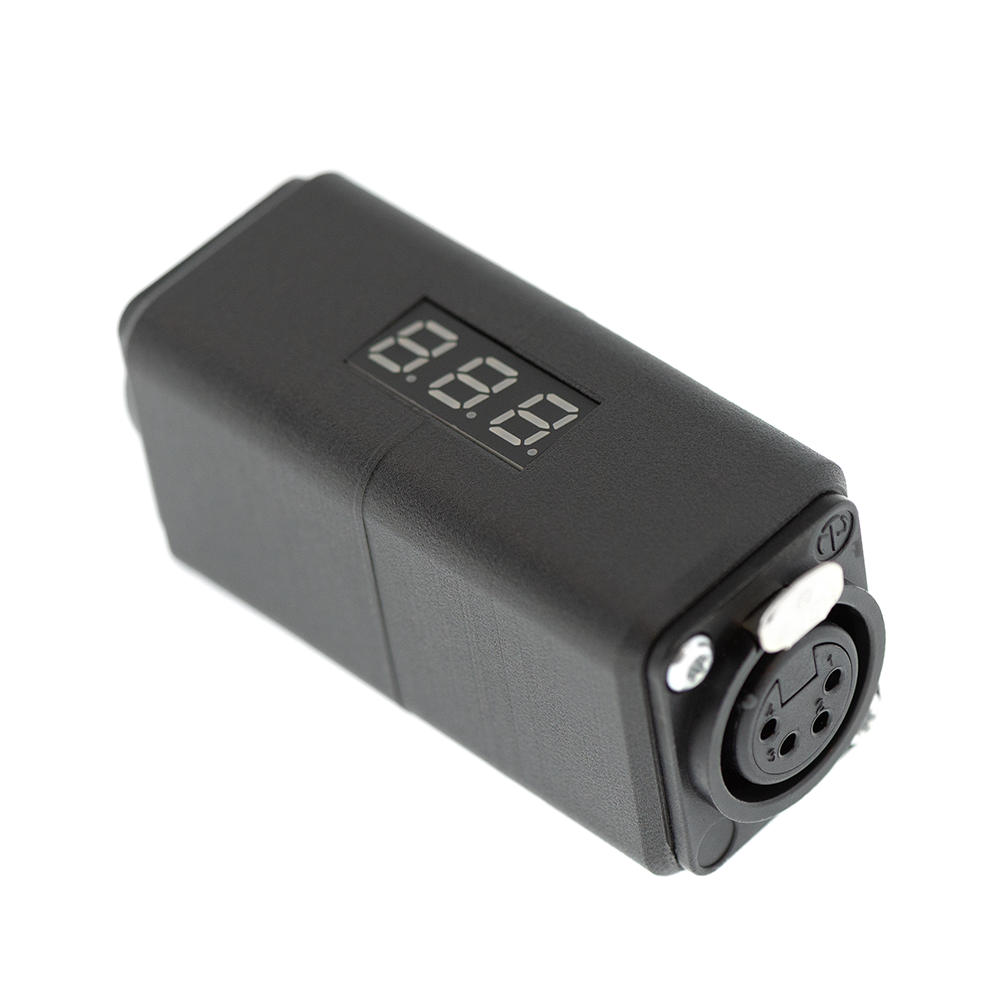

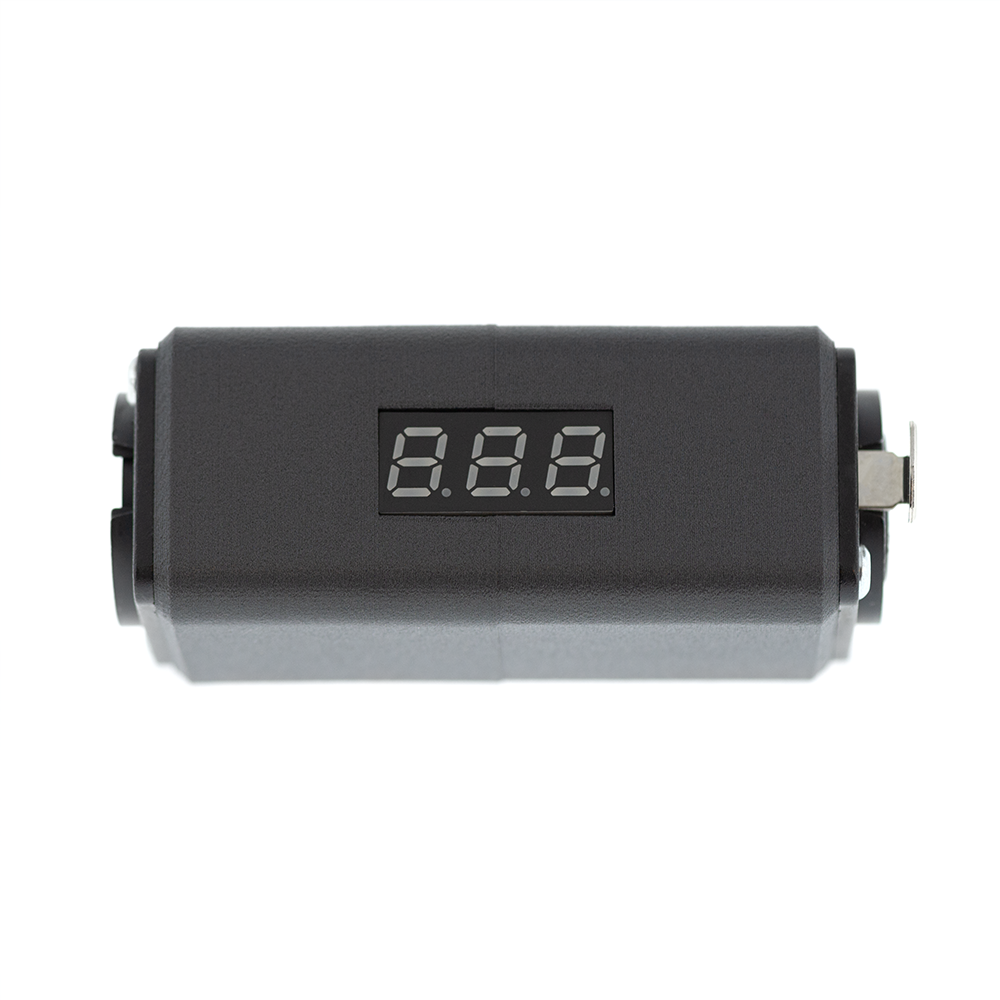

The Inline Voltmeter is a male to female passthrough with a voltage readout. Install this readout inline to see your current battery voltage. Inline Voltmeters do not affect the output voltage and are completely passive. The enclosure is printed from a strong and lightweight carbon fiber-nylon composite.
- Dimensions - 2.98" x 1.18" x 1.38" (75.60mm x 30mm x 35mm)
- Weight - 3oz ( 86g)
- Voltage Meter - 2.5V - 30V digital readout ¹
- 3-pin XLR wired 1) GND, 2) +VDC; 4-pin XLR wired 1) GND, 4) +VDC ²
¹ Please note the maximum display voltage of 30V. Many 28V nominal batteries can operate at voltage higher than 30V. This meter can be used at higher voltage, but will only display 30V until voltage drops below the limit.
² Our 24 V XLR products use the standard wiring scheme and will need an adapter to work with Panavision equipment. We also offer customization if you plan on using these only with Panavision equipment. More information can be found here. Please contact us to inquire about customization.
All Rencher Industries products that use printed parts carry a 5-year warranty on the printed material. If your printed part warps, cracks, or fails for any reason, we will replace the defective printed part at no cost. Made in USA.
