PowerBlock USB-C PD Battery Adapter

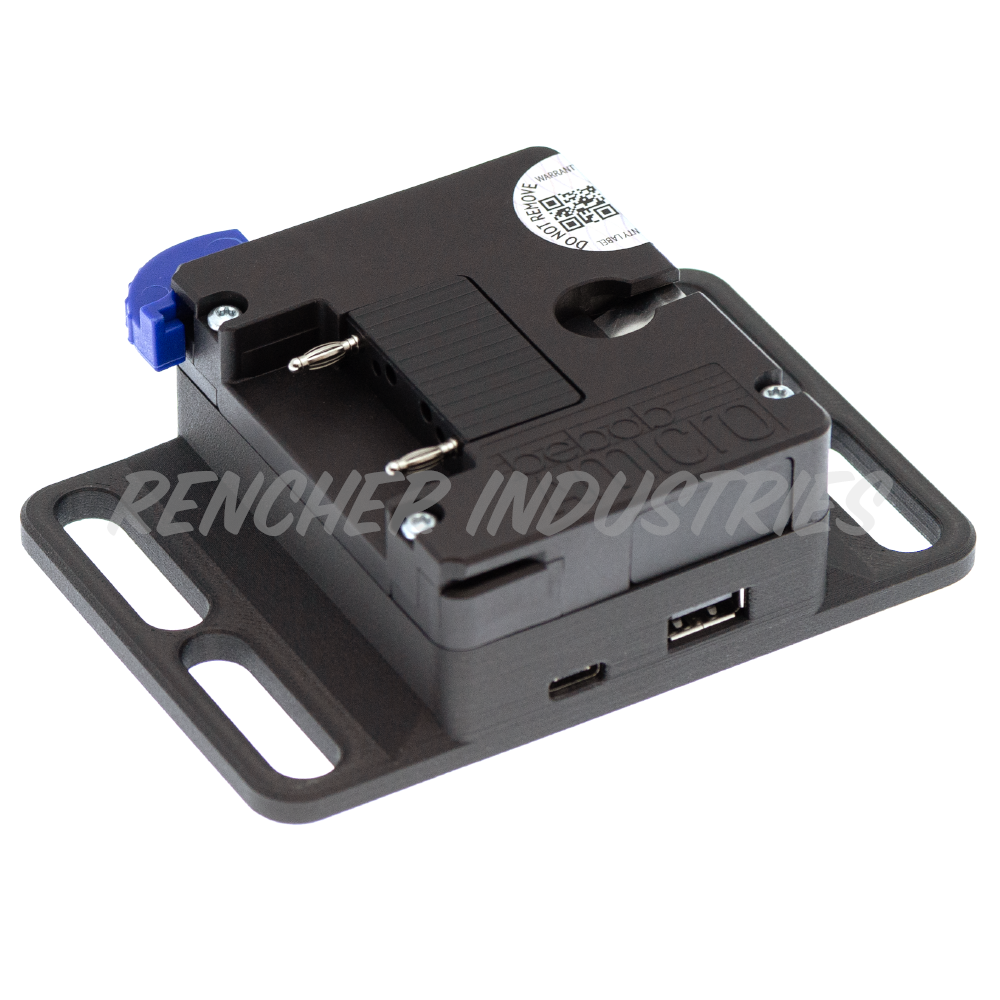

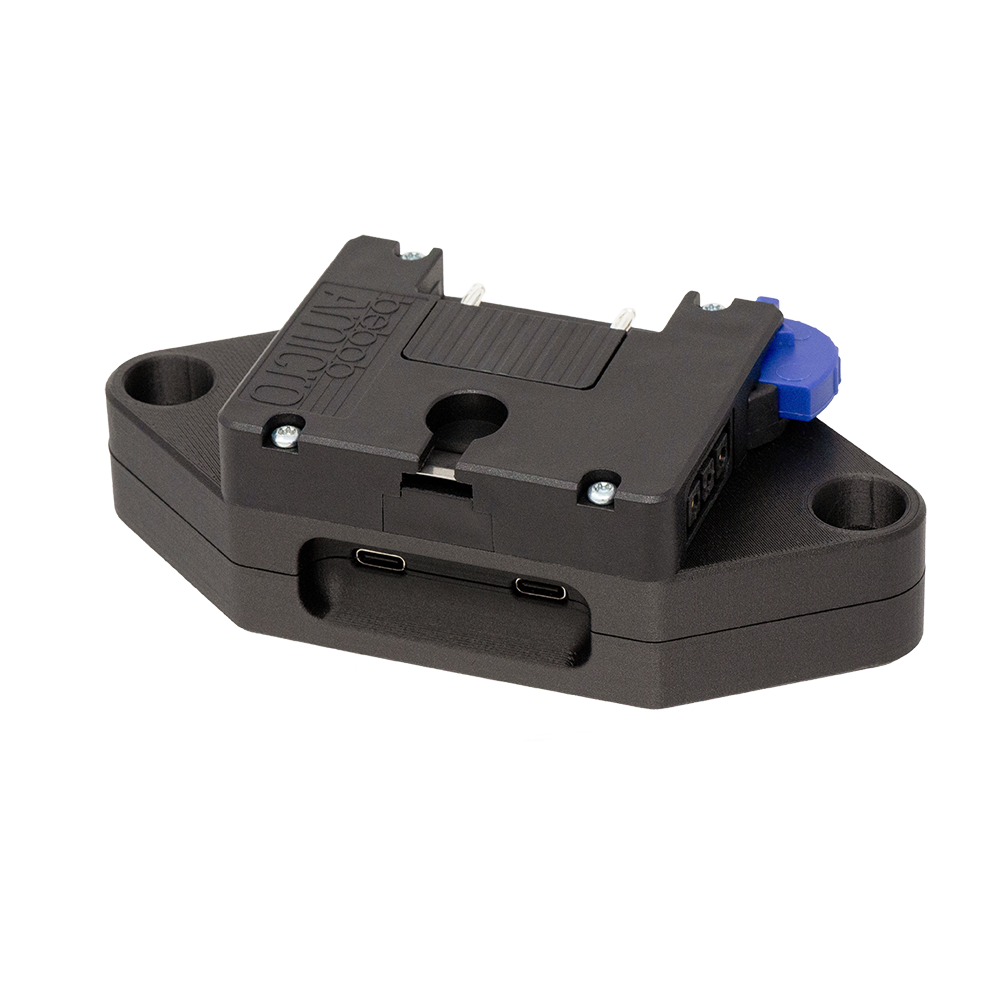

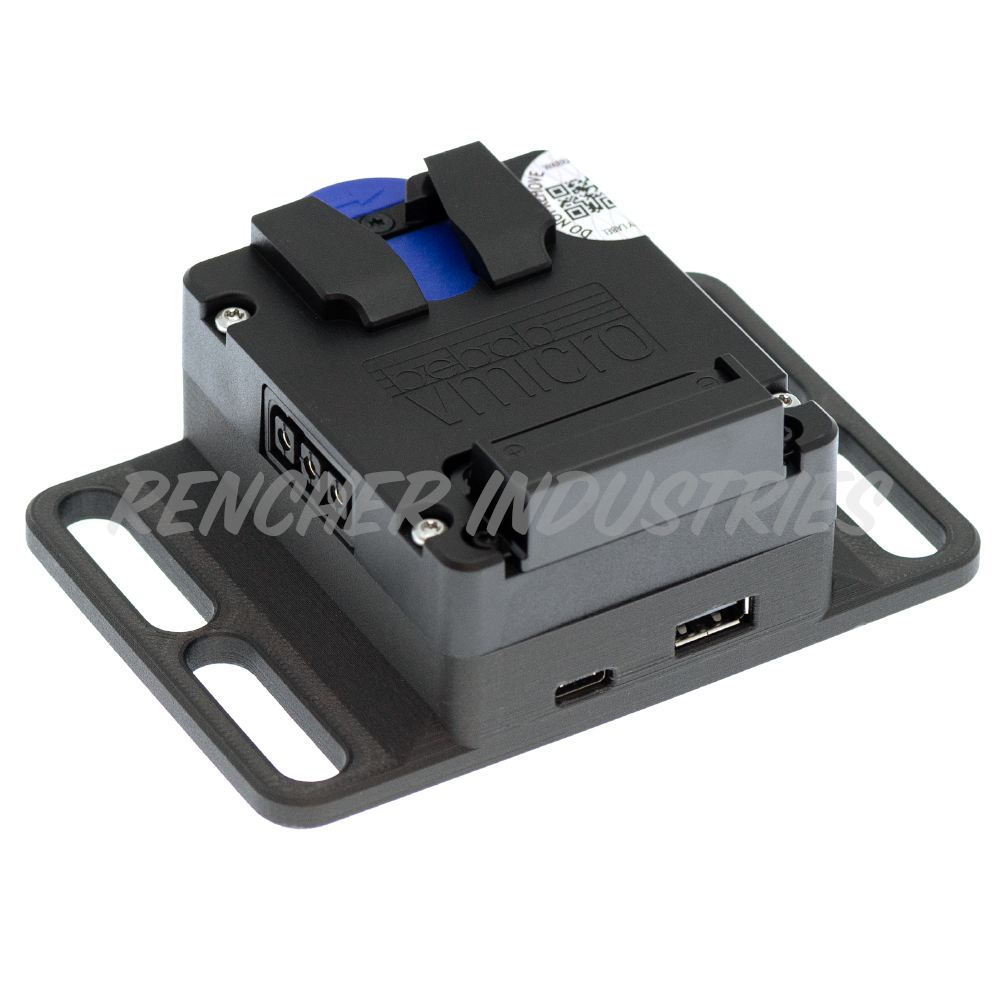

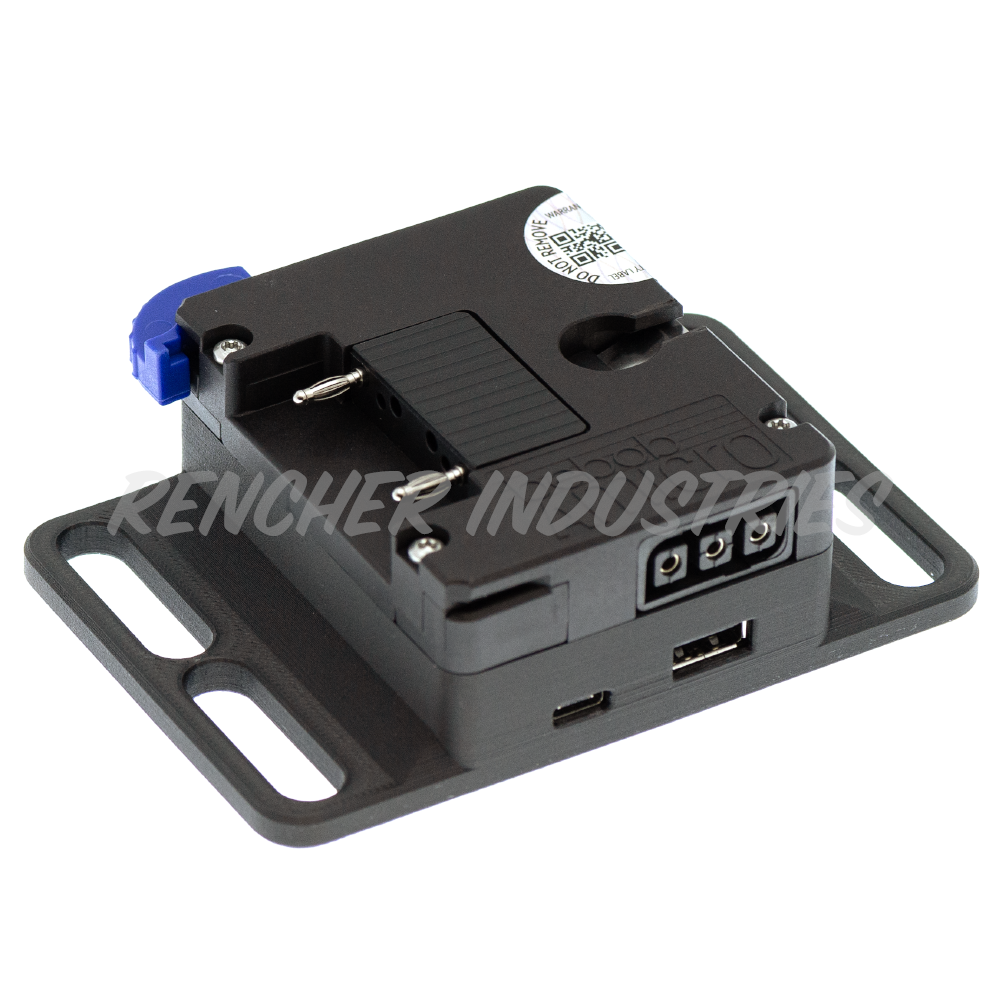

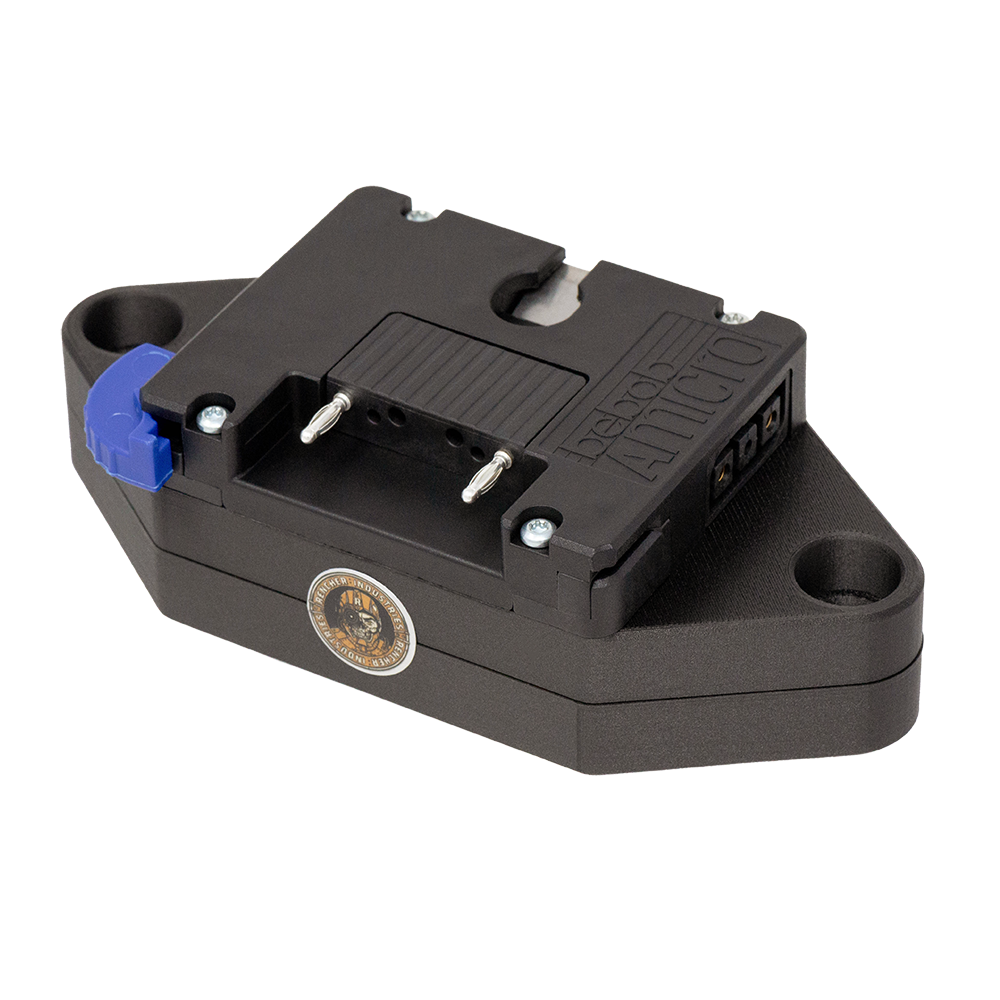

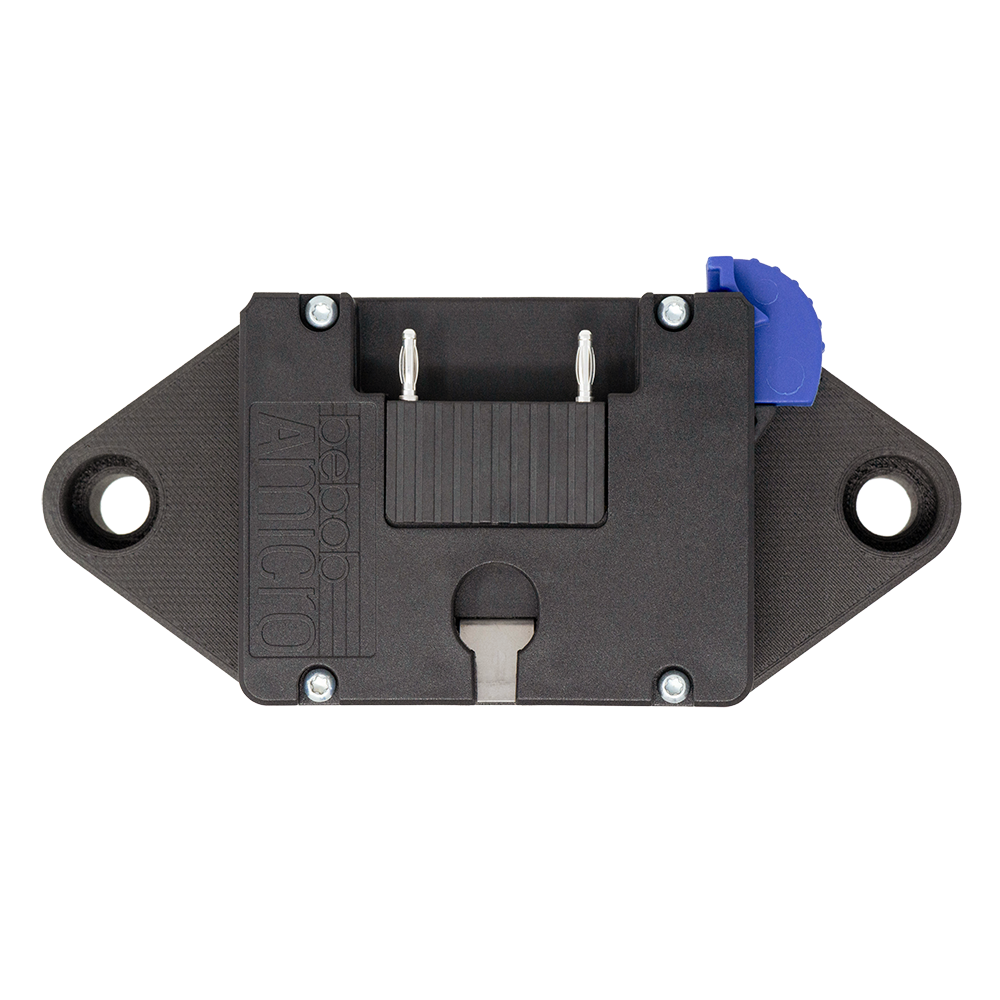

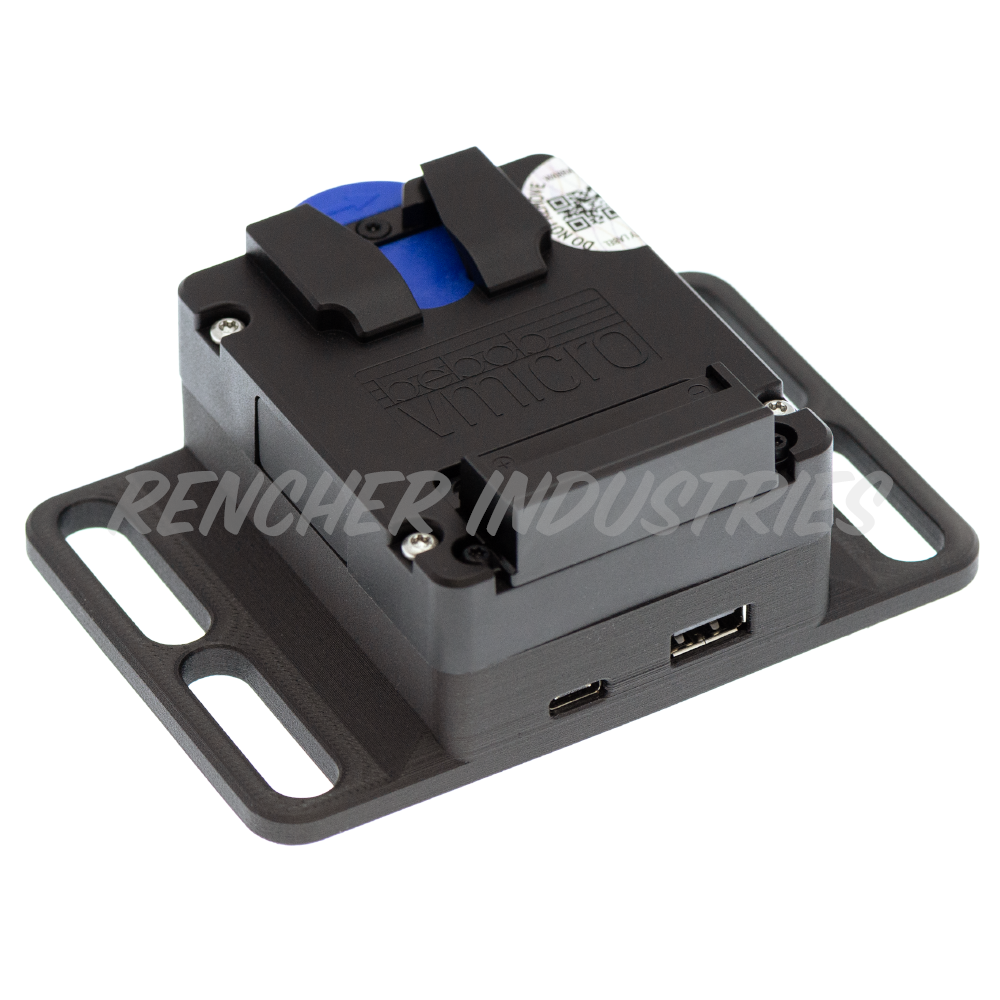

The PowerBlock USB-C PD Battery Adapter has a 1" on-center mounting platform that is compatible with Inovativ Digisystem as well as other tray systems. The 200W USB-C PD Adapter (new!) provides two 100 watt USB-C outputs, the 100 watt USB-C PD adapter (new!) provides one 100 watt USB-C output, and the 90W adapter (end of life) provides one 87 watt USB-C output and one 12 watt USB Type A output from professional camcorder batteries using bebob AMicro Gold Mount or VMicro V-Mount miniature battery plates - bebob Micro plates are compatible with any Gold Mount or V-Mount battery, not just bebob Micro batteries.

This product's housing is printed in-house using a carbon fiber-nylon composite that is very strong, lightweight, and rigid. The unit comes with four nylon 3/8-16 thumb-screws for mounting to the Inovativ DigiPlate.

USB Type-C: The USB Type-C female USB outlet is compatible with most USB Type-C implementations, and can take advantage of high-current, multi-voltage charging. USB-C works exclusively with USB-C enabled devices including the latest the MacBook Pro.

Specifications for 200 watt variant:

• Compatible with all current MacBook Pro models—100W max charging rate
• 12V-24V Input
• (2) 100W USB type-C Power Delivery 3.0 ports—200W maximum combined output

• USB-C Power Delivery 3.0: 5V, 9V, 12V, 15V, 20V, 20V 5A (100W max per port)
• E-Mark cable compatibility
• Protection circuits—ESD input/output, over/under-voltage, output over-current, Short circuit protection

Specifications for 100 watt variant:

• Compatible with all current MacBook Pro models—100W max charging rate
• 12V-24V Input
• (1) 100W USB type-C Power Delivery 3.0 port

• USB-C Power Delivery 3.0: 5V, 9V, 12V, 15V, 20V, 20V 5A
• E-Mark cable compatibility
• Protection circuits—ESD input/output, over/under-voltage, output over-current, Short circuit protection

Specifications for 90 watt variant:

• Type C Power Delivery - 5V 3A; 12V 3A, 15V 2.4A, 20V 3A, 20V 4.3A
• Type A - 5V 2.4A
• 12V-24V Input
• Protection circuits—ESD input/output, over/under-voltage, output over-current, Short circuit protection

Looking to power with a cable instead? Try our USB TAP with 4-pin XLR input.

*Batteries not included*

All Rencher Industries products that use printed parts carry a 5-year warranty on the printed material. If your printed part warps, cracks, or fails for any reason, we will replace the defective printed part at no cost.

This is the original PowerBlock USB PD adapter. Don't be fooled by knockoffs!
