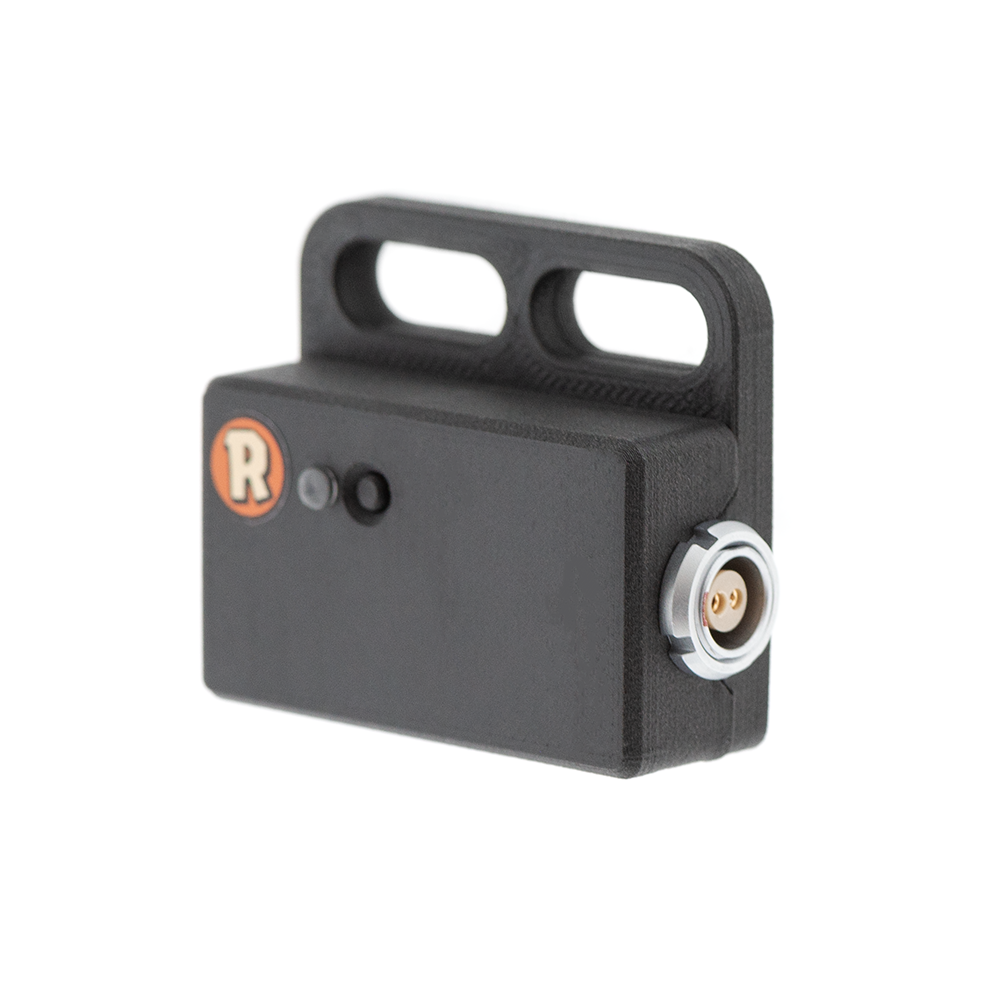

The USB-Sink can request any voltage available to the USB Power Delivery (PD) 2.0 specification from a compatible source, and output the specified voltage to a 2-pin Lemo (Lemo part EGG.0B.302.CLL, wired pin-1 GND). This adapter can be used to power professional equipment from compatible USB-C sources. This is especially handy for remote work where consumer batteries are readily available. *

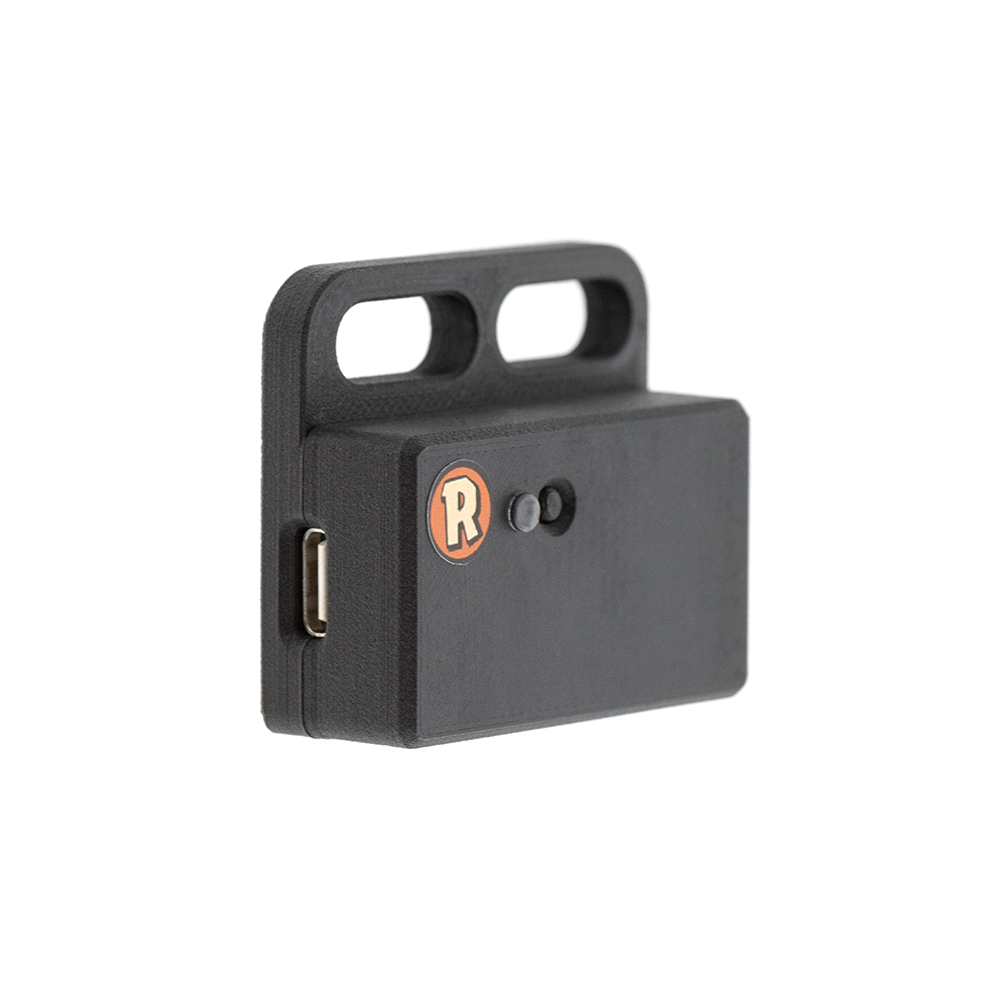

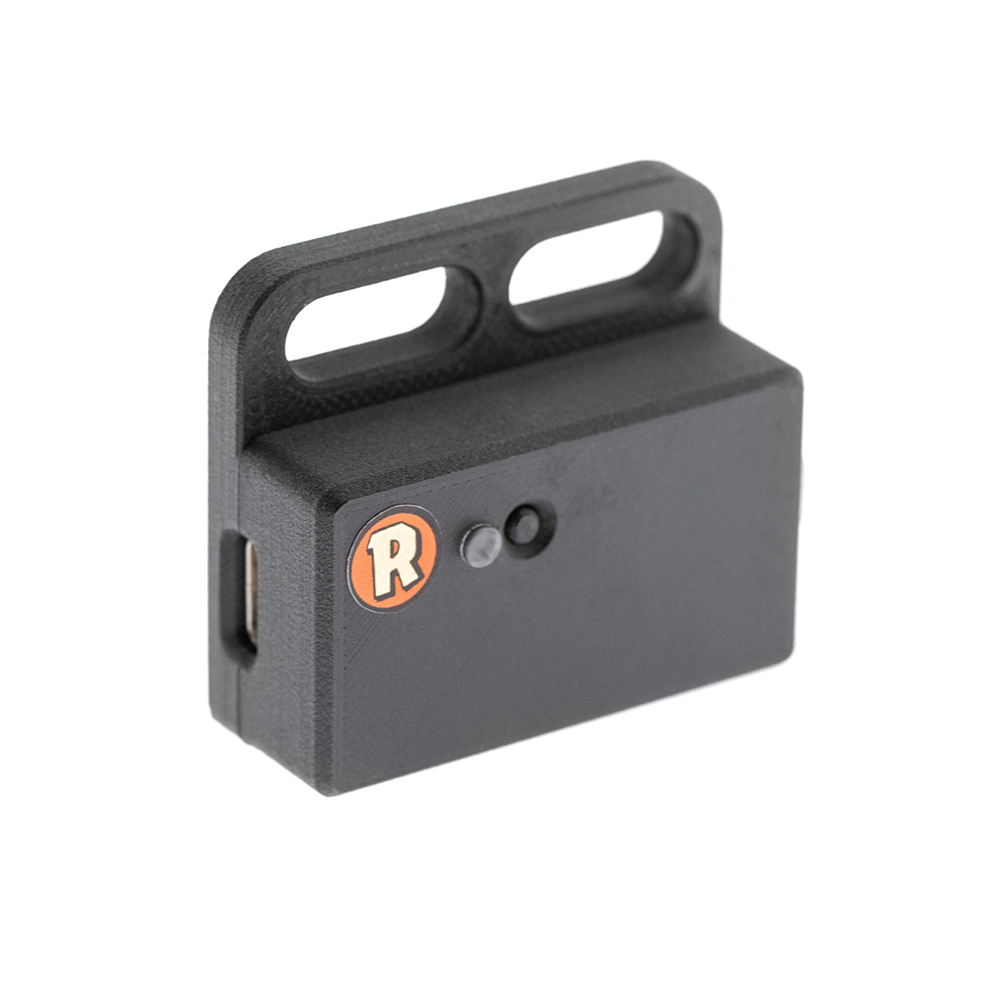

The USB-Sink is housed in a printed carbon fiber-nylon composite, which is super strong and extremely lightweight. The housing measures 1.8" x 1.5" x 0.7" (45mm x 38.6mm x 17.2mm) and 0.7 oz (20 grams), fully assembled. The USB-Sink also features a built-in mounting bracket for mounting to 1/4-20 threaded holes.

Available voltage and current:

  • 5V, 3A
  • 9V, 3A
  • 12V, 3A
  • 15V, 3A
  • 20V, 5A
  • Auto Mode - Set to the highest supported voltage
  • Polling Mode - Display all supported voltages in sequence

The USB-C PD Sink will output 15V (3A max) by default. To change the output voltage, follow the programming instructions.

* This device will only work properly with a source USB that is fully compatible with the USB PD 2.0 specification. Maximum output voltages shown below are from the 2.0 specification. USB PD 3.0 is backwards compatible with USB PD 2.0. If the USB-Sink is connected to a non USB PD source, It will pass 5V from the USB port to the Lemo output.

Batteries not included
